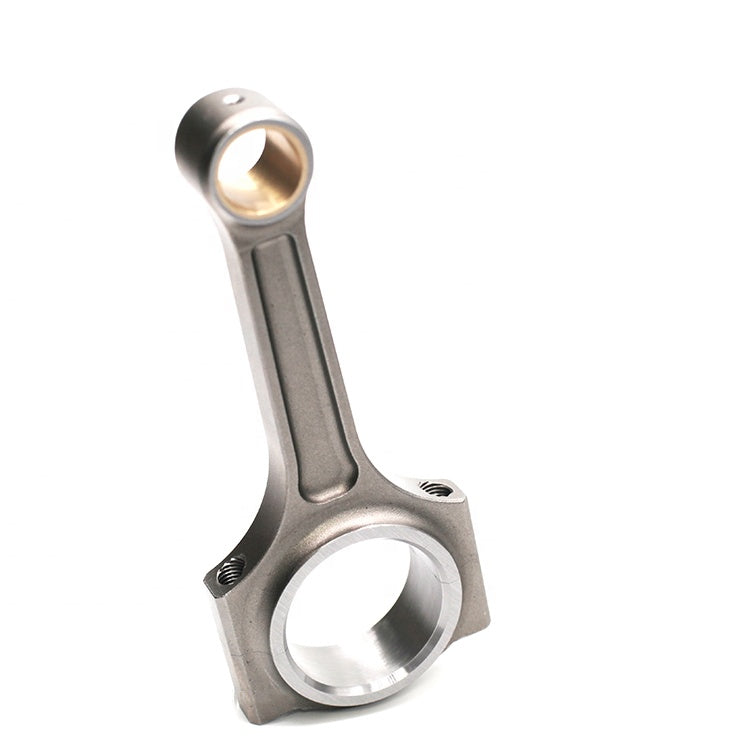

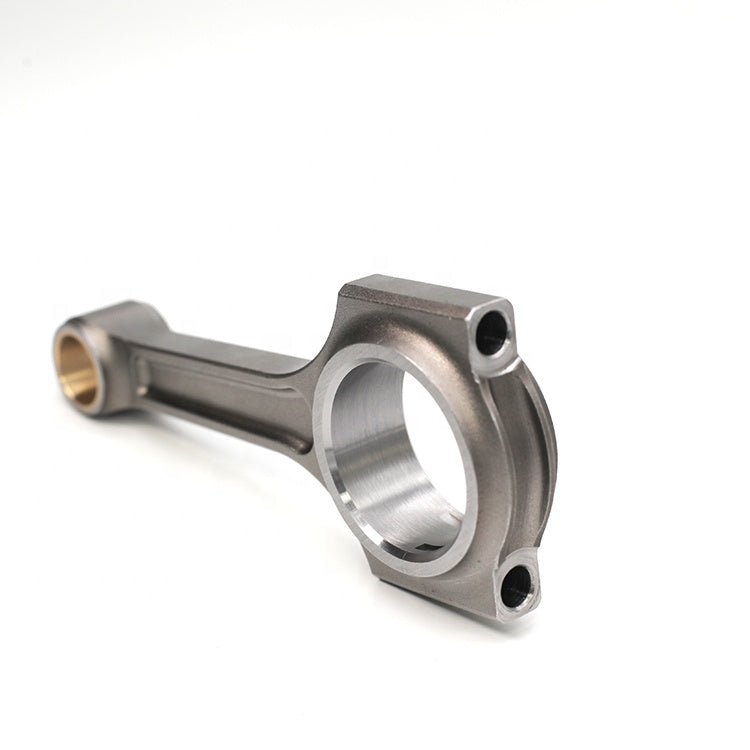

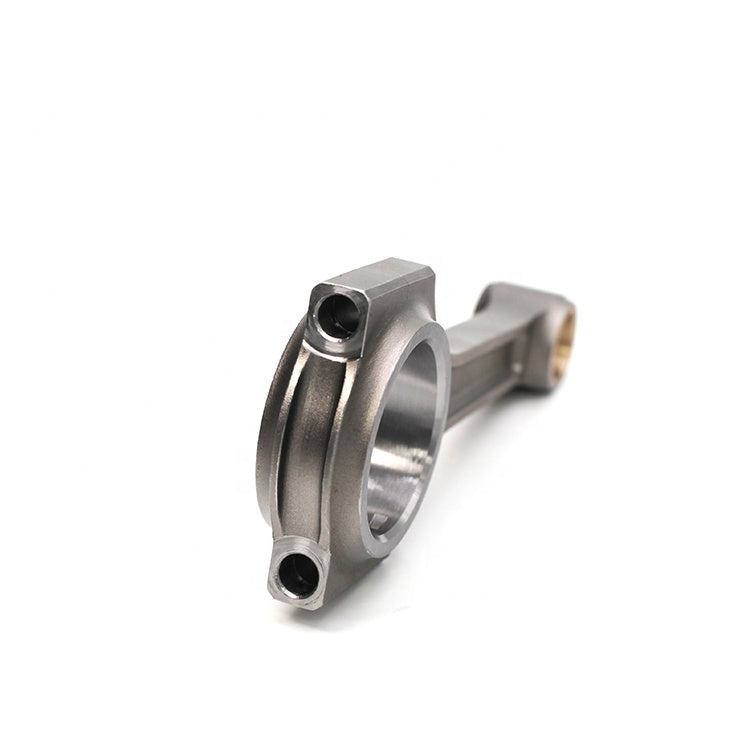

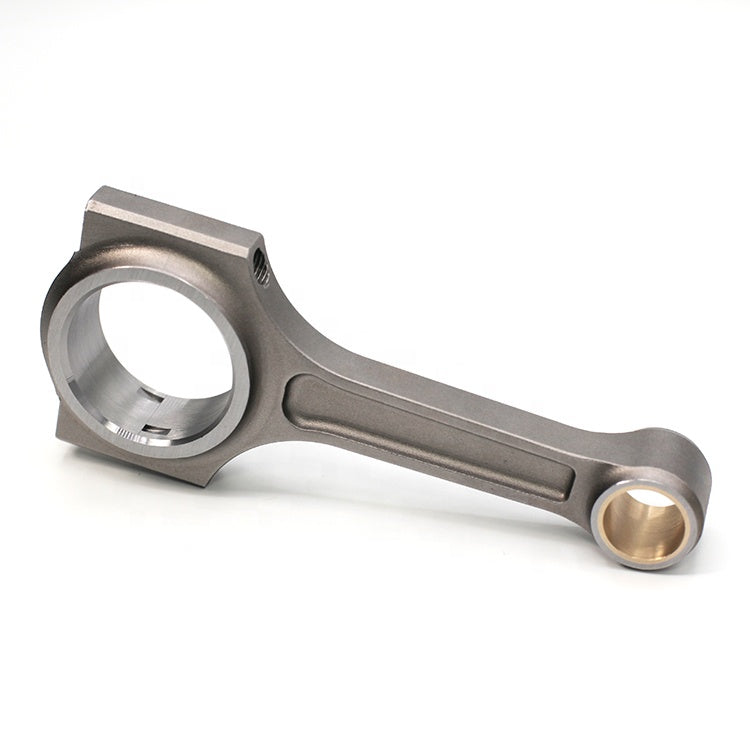

Forged 4340 Conrod for Toyota Land Cruiser Prado 1KD 1KDFTV 1KD-FTV Connecting Rod

Application: For Toyota 1KD 1KDFTV 1KD-FTV conrods

Material: Forged 4340 steel

Copper bush Material: QAL10-3-1.5

Quantity: 1 set includes 4 pieces conrods

Connecting Rod Finish: Shot-peened

Weight Matched Set: +/- 1gram in set

Product name： for Toyota 1KD 1KDFTV 1KD-FTV Connecting Rod

Dimensions

Center to Center Length: 158.5mm

Big End Bore Diameter: 62.01mm

Big End Width: 31.75mm

Small End Bore Diameter: 34.01mm

Small End Width: 31.75mm

Beam Style: AQ beam
